Week 2 Discussion Notes

Table of Contents

• Truth Tables

• Proof Strategies

  • Directly
  • By Contrapositive
  • By Contradiction

• The Natural Numbers $\N$

  • Mathematical Induction

Truth Tables

Definition

A proposition is a statement that is either true or false, but not both. Given two propositions $P, Q$, we have the following logical operations:

• $P \vee Q$ (read "$P$ or $Q$") is the statement which is true if at least one of $P$ or $Q$ is true and false if both are false.
• $P \wedge Q$ (read "$P$ and $Q$) is the statement which is true if both $P$ and $Q$ are true and false if either is false.
• $\neg P$ (read "not $P$") is the statement which is true if $P$ is false and false if $P$ is true.
• $P \implies Q$ (read "if $P$ then $Q$") is the statement $\neg P \vee Q$.

If two statements $P$ and $Q$ always evaluate to the same truth value, then we say that they are equivalent and write $P \equiv Q$.

Propositional logic looks a lot like set theory: if $A, B$ are sets, then compare the following:

If you're comfortable with set theory, then it might help you remember the symbols. The way I tell the difference between "$\vee$" and "$\wedge$" is that "$\vee$" looks like a union, "$\cup$", and "$\wedge$" looks like an intersection, "$\cap$".

It's also not surprising that De Morgan's laws apply to propositional logic as well:

Theorem (De Morgan's laws)

Let $P, Q$ be statements. Then

1. $\neg \p{P \vee Q} \equiv \neg P \wedge \neg Q$
2. $\neg \p{P \wedge Q} \equiv \neg P \vee \neg Q$

Proof.

To prove equivalences of statements, we'll want to use a truth table.

For (i), we have

$$\begin{array}{ccccccc} P & Q & \neg P & \neg Q & P \vee Q & \neg \p{P \vee Q} & \neg P \wedge \neg Q \\\hline 1 & 1 & 0 & 0 & 1 & 0 & 0 \\ 1 & 0 & 0 & 1 & 1 & 0 & 0 \\ 0 & 1 & 1 & 0 & 1 & 0 & 0 \\ 0 & 0 & 1 & 1 & 0 & 1 & 1 \\\hline \end{array}$$

From the table, we see that $\neg\p{P \vee Q}$ and $\neg P \wedge \neg Q$ always evaluate to the same true value, so they are equivalent.

Similarly, for (ii),

$$\begin{array}{ccccccc} P & Q & \neg P & \neg Q & P \wedge Q & \neg \p{P \wedge Q} & \neg P \vee \neg Q \\\hline 1 & 1 & 0 & 0 & 1 & 0 & 0 \\ 1 & 0 & 0 & 1 & 0 & 1 & 1 \\ 0 & 1 & 1 & 0 & 0 & 1 & 1 \\ 0 & 0 & 1 & 1 & 0 & 1 & 1 \\\hline \end{array}$$

So $\neg\p{P \wedge Q} \equiv \neg P \vee \neg Q$ also. $\square$

Remark.

Compare these with De Morgan's laws for sets:

• $\neg \p{P \vee Q} \equiv \neg P \wedge \neg Q \longleftrightarrow \p{A \cup B}^\comp = A^\comp \cap B^\comp$
• $\neg \p{P \wedge Q} \equiv \neg P \vee \neg Q \longleftrightarrow \p{A \cap B}^\comp = A^\comp \cup B^\comp$

Something that's surprising is that if $P$ is false, then "$P \implies Q$" is true. For example, the statement "if pigs can fly, then I like math" is a true statement, regardless of whether you like math or not. This is another example of a vacuous truth like we saw last week).

The intuition is as follows: how would you prove "$P \implies Q$" wrong?

Example 1.

Let's consider the following statement:

If I procrastinate, then I won't finish my homework.

In this case, $P = ``\text{I procrastinate}"$ and $Q = ``\text{I won't finish my homework}"$. To disprove this, you would need to procrastinate ($P$ is true) and still finish your homework ($Q$ is false). In other words,

$$\neg\p{P \implies Q} \equiv P \wedge \neg Q$$

So by De Morgan's laws,

$$P \implies Q \equiv \neg\p{P \wedge \neg Q} \equiv \neg P \vee Q.$$

To finish this section, we'll look at another truth table example.

Example 2.

Evaluate the truth table for $Q \vee \p{P \implies \p{\neg Q \vee \neg P}}$.

Solution.

First, it might be a good idea to rewrite the implication in terms of $\vee$, $\wedge$, and $\neg$. To make things easier to see, let $R \equiv \p{\neg Q \vee \neg P}$. Then

$$P \implies \p{\neg Q \vee \neg P} \equiv P \implies R \equiv \neg P \vee R \equiv \neg P \vee \p{\neg Q \vee \neg P},$$

so

$$Q \vee \p{P \implies \p{\neg Q \vee \neg P}} \equiv Q \vee \p{\neg P \vee \p{\neg Q \vee \neg P}} \equiv Q \vee \neg P \vee \neg Q \vee \neg P,$$

since parentheses don't matter with $\vee$'s. This gives the following truth table:

$$\begin{array}{ccccc} P & Q & \neg P & \neg Q & \neg Q \vee \neg P & Q \vee \neg P \vee \neg Q \vee \neg P \\\hline 1 & 1 & 0 & 0 & 0 & 1 \\ 1 & 0 & 0 & 1 & 1 & 1 \\ 0 & 1 & 1 & 0 & 1 & 1 \\ 0 & 0 & 1 & 1 & 1 & 1 \\\hline \end{array}$$

Thus, the original statement always evaluates to true.

Proof Strategies

Let's say we want to prove something in the form $P \implies Q$. We have three main strategies:

Directly

With this strategy, we assume $P$ is true and try to logically conclude that $Q$ is also true.

Example 3.

Let $x \in \R$ be non-zero. Show that $x^2 > 0$.

Solution.

Since $x$ is not zero, there are two cases: $x > 0$ and $x < 0$. If $x$ is positive, then multiplying by $x$ on both sides of $x > 0$ doesn't flip the inequality:

$$x \cdot x > x \cdot 0 \implies x^2 > 0.$$

If $x < 0$, then $-x > 0$, so we can do the same thing with this:

$$\p{-x \cdot -x} > 0 \cdot \p{-x} \implies x^2 > 0.$$

By Contrapositive

Definition

The contrapositive of $P \implies Q$ is $\neg Q \implies \neg P$.

Proposition

$\p{P \implies Q} \equiv \p{\neg Q \implies \neg P}$.

Proof.

Just by expanding out the definition of implication,

$$\begin{aligned} \p{\neg Q \implies \neg P} &\equiv \neg\p{\neg Q} \vee \neg P \\ &\equiv Q \vee \neg P \\ &\equiv \neg P \vee Q \\ &\equiv \p{P \implies Q} \end{aligned}$$

$\square$

What we've shown is that proving $P \implies Q$ is exactly the same as proving its contrapositive $\neg Q \implies \neg P$. As simple as it is, some proofs are a lot easier when you prove the contrapositive instead of proving it directly.

Example 4.

Let $n, m \in \N$ be such that $n$ is odd. Show that if $mn$ is even, then $m$ is even.

Solution.

Here, $P = ``mn \text{ is even}"$ and $Q = ``m \text{ is even}"$. To prove this by contrapositive, we need to assume $\neg Q$ (i.e., $m$ is odd) and prove $\neg P$ (i.e., $mn$ is odd).

If $m$ is odd, then we can write it in the form $m = 2k + 1$, where $k \in \Z$ (being odd means that you're $1$ away from an even number). Then

$$mn = \p{2k + 1}n = \underbrace{2kn}_\text{odd} + \underbrace{n}_\text{even}.$$

An odd number plus an even number is odd, so $mn$ is odd, which proves $\neg P$, and we're done.

By Contradiction

The third main way we can prove things is by contradiction. This means assuming $P \implies Q$ is false and trying to arrive at a contradiction, i.e., something that goes against a fact that we know.

Example 5.

Show that if $a, b \in \Z$, then $18a + 6b \neq 1$.

Solution.

To prove this by contradiction, we need to assume that the statement is false. In this case, $P = ``a, b \in \Z"$ and $Q = ``18a + 6b \neq 1"$. The negation of $P \implies Q$ is $P \wedge \neg Q$, i.e., $a, b \in \Z$, but $18a + 6b = 1$.

If we divide both sides by $6$, we get $3a + b = \frac{1}{6}$. But $a$ and $b$ are integers, which means that $3a + b$ must be an integer. However, this implies that $3a + b = \frac{1}{6}$ is an integer, which is impossible. Thus, $\neg\p{P \implies Q}$ is false, i.e., $P \implies Q$ is true, which completes the proof.

The Natural Numbers $\N$

Definition (Peano axioms)

The set of natural numbers, denoted $\N$, is defined via the following axioms:

• (N1) $1 \in \N$.

• (N2) If $n \in \N$, then it has a successor $n + 1 \in \N$.

• (N3) $1$ is not the successor of any element.

• (N4) If $n$ and $m$ have the same successor, i.e., $n + 1 = m + 1$, then $n = m$.

• (N5) Suppose $S \subseteq \N$ is a subset satisfying the following properties:

  1. $1 \in S$
  2. If $n \in S$, then $n + 1 \in S$

  Then $S = \N$.

Let's try to understand these one-by-one:

• (N1) just says that $\N \neq \emptyset$.

• (N2) basically says that you can add natural numbers.

• (N3) says that $1$ is the first natural number.

• (N4) basically tells you that there are no "loops" in $\N$. To illustrate, I'm going to represent $\N$ with numbers and arrows to represent successors, e.g., since $3$ is the successor of $2$, I'm going to draw $2 \to 3$.

  With (N4), we get what we expect:

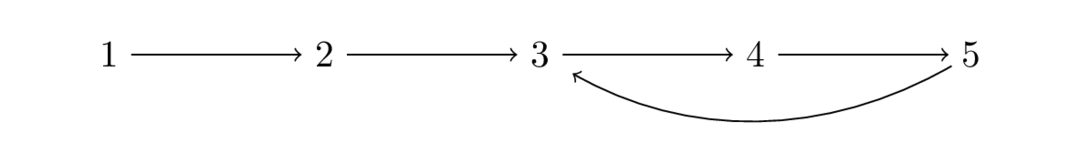

  Without (N4), then for example, $5$ and $2$ could have the same successor:



  As you can see, we just end up with a loop, which is not how the natural numbers behave—they go on forever and never repeat.

• (N5) is the principle of mathematical induction. Intuitively, this should be true: (i) tells you that $1 \in S$. Then (ii) lets you conclude $1 \in S \implies 2 \in S$. If we use (ii) again, you see $3 \in S$, $4 \in S$, etc., so $S$ has to be all of $\N$.

In summary, (N1) through (N4) just means $\N$ is what you expect it to be. (N5) is the one that you'll be using a lot to prove things.

Mathematical Induction

Suppose we have a sequence of statements, i.e., for each $n \in \N$, we have a statement $P_n$. In light of (N5), to prove that $P_n$ is true for any $n$, we just need to prove two things:

• $P_1$ is true (base case)
• If $P_n$ is true, then $P_{n+1}$ is true (inductive step)

When proving $P_n \implies P_{n+1}$, $P_n$ is called the inductive hypothesis.

Example 6.

Let $r \in \R$. Show that

$$1 + r + r^2 + \cdots + r^n = \frac{1 - r^{n+1}}{1 - r}$$

for all $n \in \N$.

Solution.

In this problem, $P_n$ is $``1 + r + r^2 + \cdots + r^n = \frac{1 - r^{n+1}}{1 - r}"$.

Base case: We need to prove $P_1$, which is the statement $1 + r = \frac{1 - r^2}{1 - r}$. By factoring,

$$\frac{1 - r^2}{1 - r} = \frac{\p{1 - r}\p{1 + r}}{1 -r} = 1 + r,$$

so $P_1$ is true.

Inductive step: Let's assume that $P_n$ is true, i.e., we will assume that

$$1 + r + r^2 + \cdots + r^n = \frac{1 - r^{n+1}}{1 - r}.$$

We need to prove that $P_{n+1}$ is true:

$$\begin{aligned} \p{1 + r + r^2 + \cdots + r^n} + r^{n+1} &= \frac{1 - r^{n+1}}{1 - r} + r^{n+1} && (P_n) \\ &= \frac{1 - r^{n+1} + \p{1 - r}r^{n+1}}{1 - r} \\ &= \frac{1 - r^{n+2}}{1 - r}. \end{aligned}$$

This shows that $P_n \implies P_{n+1}$, so by mathematical induction, $P_n$ is true for all $n \in \N$.
